Arcadia Access Control Installation: From Site Survey to First Badge

What to know first in Arcadia

Picture a single badge swipe. The reader beside the door picks up the credential and sends its number to a controller, which checks it against the list of authorized users and the schedule for that door. If the answer is yes, the controller energizes a relay, the relay switches power to the lock, and an electric strike's keeper pivots free or a maglock drops its hold. A door position switch in the frame head reports that the door opened, then closed again, and the lock resets. Leaving is handled by a request-to-exit device, either a motion sensor above the door or a switch built into the lever or panic bar, which tells the controller the opening is a legitimate exit rather than a forced entry. A power supply with battery backup feeds the whole chain, and the software records every event. Access control installation is the work of choosing each of those parts for a specific door, wiring them so they talk reliably, and testing the complete sequence until it behaves the same way every time, in Arcadia summer heat and during a power outage.

How we can help in Arcadia

• Maglock installation with code-compliant egress. Magnetic locks work where strikes can't, such as frameless glass doors and openings with no room in the frame. We mount 600- or 1,200-pound units with the correct bracket for the door's swing, then add the egress pieces fire code expects: a sensor on the exit side, a timed push-to-exit button and a fire alarm release.
• Electrified locksets and exit devices. For a cleaner look, or a fire door that needs positive latching, we install electrified mortise and cylindrical locks that switch the outside lever on command. Power reaches the door through an electric transfer hinge or concealed power transfer, so no loop of cable is left exposed at the hinge edge.
• Keypads and standalone single-door systems. Battery-powered electronic locks with integrated keypads or readers fit interior offices and storage rooms where pulling wire would be costly. We mount and program them, register them with their software where applicable, and set up a battery replacement routine so a lock doesn't run flat on a busy morning.
• Cabling, conduit and pathways. Distance changes the wire. Wiegand readers are generally limited to a few hundred feet, while OSDP over twisted pair runs much farther. Lock power on long runs needs heavier gauge to avoid voltage drop, a common reason a strike buzzes but won't release. We calculate each run before pulling cable.
• Programming, commissioning and training. Commissioning is where problems get caught. We pull AC power to confirm battery operation, check fail-safe and fail-secure behavior, trigger the fire release where present, and verify the mechanical key override on every fail-secure door. Anything that doesn't behave as designed gets corrected before we leave the site.

Local factors in Arcadia

Hotels and attractions have back-of-house doors, storage, offices and employee entrances that need control separate from guest room locks. We install readers on staff entrances, linen and supply rooms and office doors, coordinate with the existing guest-room lock platform where possible, and set schedules for seasonal or event staff. Public-facing doors must keep egress clear for crowds at all times.

Clinics and medical offices near Arcadia County Park need control over medication rooms, records storage and staff-only corridors, usually with an audit trail. Fail-secure electrified mortise locks with key overrides fit these rooms well, and PIN plus card adds a second factor. Patient-facing doors need careful thought about egress and accessibility, and hospital campuses often have their own security standards that our work follows.

Storefronts in Arcadia shopping centers usually have aluminum narrow-stile doors with deadlatches or hookbolts and a steel rear exit with a panic bar. Card access on the front often uses a strike made for aluminum jambs or a latch retraction kit, while the rear exit gets a rim-device strike for deliveries. Property management approval is common, and landlord rules may decide where cable can run across the shared ceiling.

Example situations

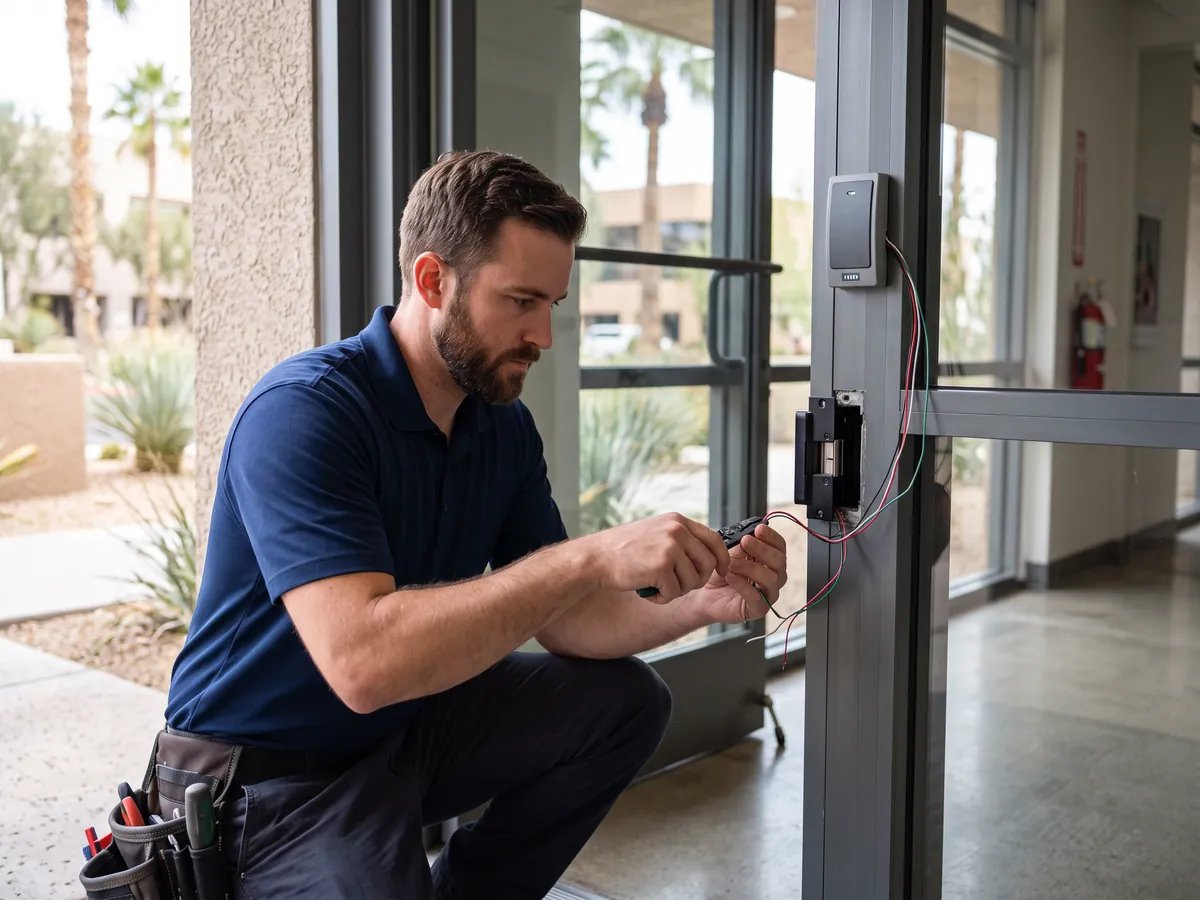

Picture a small office suite on the Huntington Drive hotel and office corridor with one glass entry door and a manager tired of rekeying after every staff change. We survey the door and find a narrow-stile aluminum frame with room for an electric strike, but not a maglock. We install a fail-secure strike made for that lock, a keypad reader outside and a push-button REX inside, run the low-voltage cable above the ceiling to a small controller, and show the manager how to add and remove codes.

• A typical call: a warehouse off Baldwin Avenue has a tilt-up concrete office with one man door beside the dock. The owner wants drivers kept out of the office while warehouse staff badge in early. Cable has to run in surface conduit, and the reader faces the afternoon sun, so we choose a weather-rated unit under a small hood, a 24-volt fail-secure strike and a keyed override for the shift lead.
• Say an HOA board wants fob access on the iron pool gate near Chantry Flat and Big Santa Anita Canyon. The gate must still self-close and latch, and swimmers have to be able to leave without a fob. We fit an outdoor-rated electrified gate lock with free mechanical exit, a weatherproof reader on a post, and buried conduit back to a power supply in the equipment room. Lost fobs get canceled from the management portal.
• For example, a dental office in a Downtown Arcadia strip center wants card access on its aluminum front door and steel back door. The storefront jamb is narrow, so we plan an electric strike made for aluminum frames and a slim mullion reader. The back door gets a fail-secure strike, a motion exit sensor and a door contact. Staff receive encrypted cards, and the office manager learns to cancel one from a phone.

From your call to the finished job

1. Survey and authorization. The first visit is a walk-through, not a sales pitch. We take photographs and measurements of every opening, note ceiling and wall construction, and talk through schedules and users. For leased Arcadia spaces, we ask for written landlord approval before any drilling begins.
2. Design, door schedule and written quote. You choose the platform and credentials with our input: standalone keypads, a wired controller or a cloud-managed system, and cards, fobs or phones. We flag code items, such as maglock egress devices or fire alarm release, and note any work that needs a permit or a separate licensed contractor.
3. Rough-in: cable and power. Cable goes in first. We pull composite wire from each door to the controller location, use plenum or riser-rated cable where required, install surface raceway or conduit on concrete, and mount the power supply and batteries on a dedicated outlet or circuit that an electrician provides.
4. Door hardware, readers and sensors. We set each door so the hardware can do its job: closer speed adjusted to latch every time, hinges tightened, strike alignment checked against the deadlatch plunger, maglock armatures floated to seat flat. A door that latches reliably by hand is a door that will lock reliably by badge.
5. Programming and integration. Where the design calls for it, the lock power supply receives its fire alarm input, video or intrusion integrations are connected by the relevant contractor, and cloud systems are registered to your account, not ours. You own the admin credentials from the first day.
6. Testing, handoff and documentation. Every door is tested: valid and invalid credentials, exit device, forced entry, held open, fire release and power failure on battery. Then we walk your administrator through adding and removing users, reading logs and handling a lost card, and leave a written door schedule and wiring notes.

How we quote the job

• Door and frame construction. A door that won't close, sags on worn hinges or drags on the threshold has to be corrected first. Adding closer repair, hinge replacement or frame realignment to an access control installation costs more upfront and prevents a system that never works reliably.
• Locking hardware choice. Sometimes you can reuse what you have. Existing panic bars may accept an electric latch retraction kit, and a sound lockset may only need a strike swap. We'll tell you when replacing hardware is worth it and when your current Arcadia door hardware can stay in place.
• Code, permits and other trades. Maglocks bring code-required egress devices and fire alarm release. Fire alarm connections involve the alarm company. New power circuits need an electrician. Permitted tenant improvements and large cabling scopes may require a licensed low-voltage contractor. Each adds coordination and cost, and each is listed separately in our quote.

Every job gets a clear quote before any work starts. Call (951) 903-3193 with the details and we'll tell you what to expect for your situation in Arcadia.

Practical tips before you call

• Keep a mechanical override on fail-secure doors. If the controller fails or batteries run out during a long outage, a keyed cylinder is how authorized people get in. Decide who holds that key, keep the count low, and put override keys on a restricted keyway if possible.
• Test the battery backup at least once a year. Pull AC power to the supply and confirm locks behave as designed: fail-secure doors stay locked while readers keep working, and fail-safe doors release as expected. Sealed backup batteries wear out over a few years and rarely give warning before they quit.
• Talk to your fire authority before installing maglocks. Requirements for sensor release, push-to-exit buttons and fire alarm interlocks are specific, and some occupancies carry extra restrictions. An early conversation or plan submittal costs far less than removing a maglock after an inspector refuses to sign off.
• Plan for heat on exterior readers. West- and south-facing doors in inland Southern California get extremely hot in summer, especially on dark metal frames. Check the reader's operating temperature rating, consider a hood or shade, and avoid mounting on surfaces that soak up direct afternoon sun.

Common errors that cost time and money

• Running lock power on wire that's too thin for the distance. Voltage drop over a long run means the strike gets less than it needs, buzzes and won't release under load. Calculating gauge before pulling cable avoids the most common callback on new installations.
• Relying on a motion sensor alone to release a maglock. Motion sensors can miss short people, wheelchair users and slow movement. Code-compliant maglock egress generally requires a separate push-to-exit button that cuts lock power directly and holds the door free on its own timer, plus release on fire alarm.
• Mounting readers without thinking about reach and approach. Accessibility rules limit operable parts to heights a wheelchair user can manage, and readers placed on the hinge side or behind a door swing frustrate everyone. Settle placement during the survey, not with a drill already in hand.

Getting to Arcadia

Arcadia is about 46 miles from our San Bernardino base, roughly 50 minutes in light traffic via Palm Avenue to I-215 North, I-15 South to the SR-210/I-210 Foothill Freeway. When you call, you get an arrival estimate based on where the technician is and the traffic at that moment.

If you're close to First Avenue, tell us which exit or cross street you're nearest. It trims the last mile and keeps the van from circling a block that looks right on the map but isn't.

About Arcadia: North Santa Anita Avenue becomes Santa Anita Canyon Road, which climbs about three miles into the Angeles National Forest to Chantry Flat and the Sturtevant Falls trail.

Business lock or door work in Arcadia?

Call (951) 903-3193 with the address, the doors or hardware involved and when the site is open. We'll quote the job before any work starts and book a time within our hours that suits your schedule.
